Product Details
Details
Applicable industries

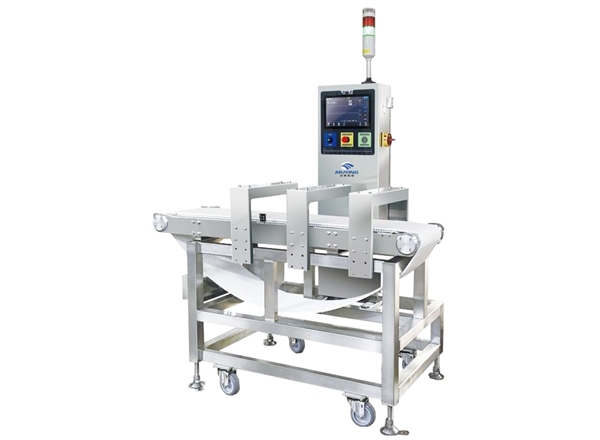

·Ordinary metal detectors detect all metals that can conduct electricity, but in fact many products are packaged with aluminum. For example: candy, biscuits, salt-containing products, etc., the above products cannot be detected by ordinary metal detectors, but these problems can be solved by using special aluminum foil metal detectors.
Product Features
Suitable for all foil-wrapped products
Chain plate conveyor belt is easy to clean
The height of the detection channel can be adjusted up and down, suitable for products of different sizes
Color touch screen (7-inch TFT LCD)
? Intuitive and convenient full color touch screen,
Sensitivity memory function
? It can store the setting values of 10 different products, and it is easy to operate.
Controlled metal detection history
?Check the detection records of different time periods (specified in daily/weekly/monthly/period)
? The data record can be exported through LCD screen and U disk.
Convenient software upgrades
? Software upgrade via USB and touch screen when latest version
Hierarchical password setting function
? For different positions, different permissions, set passwords suitable for different levels of permissions, clarify permissions and responsibilities (users, management and engineers)
You can choose the rejection method: copy rejection, push rod rejection, blow air rejection.
Technical parameter
|
Test the product |
Aluminum foil packaging products |
|
Effective detection channel width |
350mm |
|
Effective detection channel height |
<150mm (adjustable) |
|
Detectable Metal Type |
FE, SUS304 |
|
Detection accuracy |
When the passing height is less than 50mm, it can detect 1.0mm |
|
When the passing height is less than 100mm, it can detect 1.5mm |
|
|
When the passing height is less than 150mm, it can detect 2.0mm |
|
|
transfer speed |
15-40m/min |
|
Overall length |
1600mm |
|
Alarm method |
Sound and light alarm, belt stop |
|
authority management |
Multi-level password protection function |
|
Product Category |
10 different product parameters can be saved |
|
data storage |
USB exportable |
|
Signal processing method |
Digital DSP processing |
|
Operation interface |
10-inch touch screen |
|
language selection |
Chinese and English and other languages |
|
Parameter setting |
Automatic setting + manual setting |
|
conveyor belt |
White PU food grade |
|
Operating Voltage |
Single AC 220V 50/60Hz |
|
Operating temperature |
0℃-40℃ |
|
Mechanical part |
304 stainless steel |
|
Probe protection class |
IP55 |
|
Voltage |
Single-phase AC220V 50/60Hz |
|
power |
300W |
|
Remarks: The detection sensitivity will change due to factors such as environment and products, and the actual test of the product shall prevail. |
|
